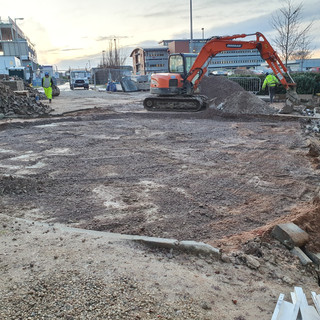

KCC were brought in to prepare the site for the new extension to be built. This involved lifting area's of paving, removal of bollards and soft landscaping to make space for the new footprint.

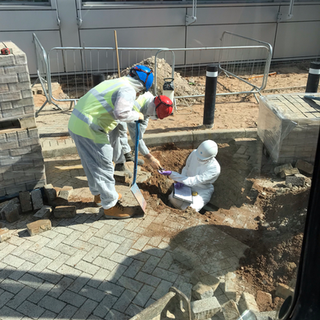

During the enabling works some small fragments of asbestos were identified in the soil report. these area's were isolated and removed from site as hazardous waste in skips. The removal method was risk assessed before any work was carried out.

Once the area had been cleared of any hazardous material our engineer Andy set out our foundation locations, the reduce dig was carried out and the foundation pits excavated.

Next the reinforcement was tied and pre hung in the pits, these would eventually carry the concrete columns that are constructed off the finish slab.

Once set in position concrete was poured. Once poured they were checked again for the final position. The vertical columns has only 50mm of cover so accuracy was important.

Next the oversize was prepared to receive the finish floor slab. This was constructed of Type 1 with 2 layers of membrane a 2000 gauge (yellow) and a 1200 gauge (black). The 2000g layer was double taped and single taped to give an air tight layer, pop ups were sealed with top hats. The 1000g was single taped only to keep in place.

Onto went a layer of 75mm insulation and finally a 3rd slip membrane was placed on top. 50mm Spacers were then place before the final reinforced matt was tied in situ.

Around the perimeter was a RC slab thickening this also has a boot which had to be hung from the outside shutter making it a little trickier to hold in place. we did this by running a spacer strip along the top of the toe which carried the weight of the boot.

Once prepared the new concrete floor was placed and power floated to an FM2 finish. The contractor did not want a polish so the finish was matt only.

External Works

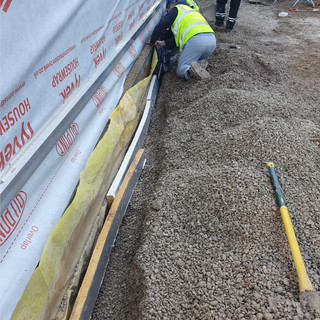

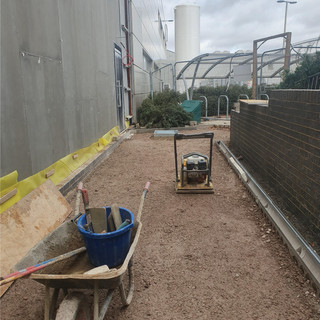

On return to site type 1 was placed and compacted to receive the paving. Reclaimed blocks were placed around the perimeter of the building up to the turning circle.

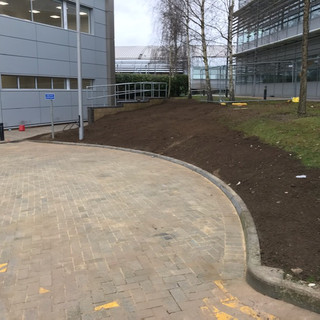

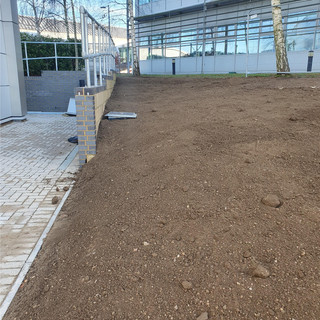

The turning circle paving was lift and lowered to allow for the changes in falls. this was then ties into the paths around the building. An additional 3 gullies were placed to take the water form the increased slope.
